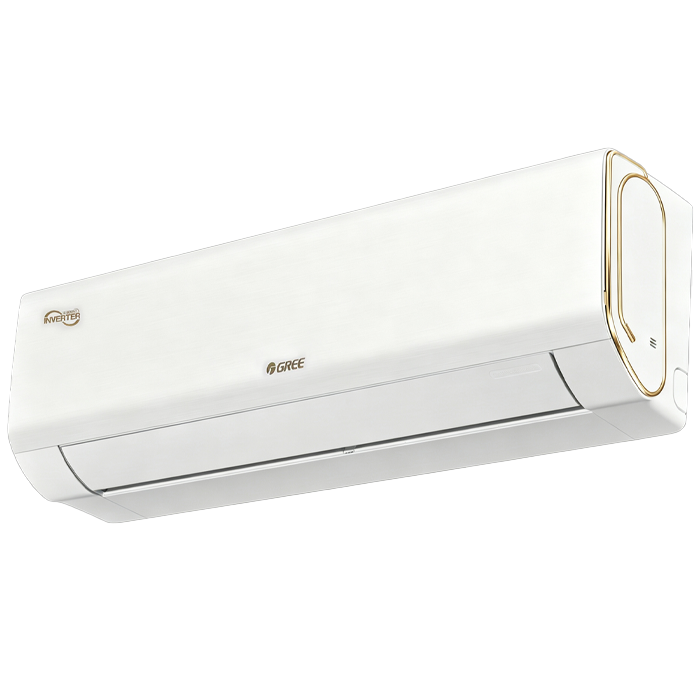

Wall Mounted Split AC

G-TIME PRO Inverter


Model  GWH12BCCXD-S3DTA1A GWH18BCDXF-K3DTA1A GWH24BCEXF-S3DTA1H
Max. Cooling Capacity Btu/hr 13648 20301 25900
Max. Heating Capacity Btu/hr 15695 22519 29700
EER/C.O.P W/W 3.61/3.80 3.43/3.50 3.51/3.89
Power Supply Ph,V,Hz 1Ph, 220 - 240, 50-60Hz 1Ph, 220 - 240, 50Hz 1Ph, 220 - 240, 50-60Hz
Power Input Cooling  W 1015 1580 2000
Heating W 974 1600 1885
Current Input  AA/A5/A4/A3/A2/A1 A 2.4/4.7/4.9/5.4/5.9/5.9 5.4/6.3/7.2/8.2/8.7/9 5.5/6.2/7.3/8.1/10.1/12.1
Indoor Unit
Air Flow Volume Indoor m3/hr 720/600/470/380 1050/915/810/550 1500/1100/950/800
Dehumdifying Volume Indoor L/hr 1.4 1.8 2.5
Sound Pressure Level Indoor dB (A) 44/39/34/31 52/44/36/30 53/41/38/36
Outline Dimension W*H*D mm 886*276*209 1006*333*250 1144*333*250
Package Dimension L*W*H mm 949*350*275 1059*406*328 1196*415*337
Outdoor Unit
Sound Pressure Level Outdoor dB (A) 54 60 60
Piping Connection Gas Inch 3/8'' 1/2'' 5/8''
Liquid Inch 1/4'' 1/4'' 1/4''
Outline Dimension W*H*D mm 802*555*350 958*660*402 958*660*402
Package Dimension L*W*H mm 872*620*398 1032*737*456 1032*737*456

Model  GWH30BCEXH-K3DTA1D GWH36AWFXH-S3DTA1B*
Max. Cooling Capacity Btu/hr 32750 39240
Max. Heating Capacity Btu/hr 34100 41000
EER/C.O.P W/W 3.22/3.22 2.97/3.45
Power Supply Ph,V,Hz 1Ph, 220 - 240, 50Hz 1Ph, 220 - 240, 50-60Hz
Power Input Cooling  W 2764 3550
Heating W 2795 3250
Current Input  AA/A5/A4/A3/A2/A1 A 6/6.8/8.3/9.9/11.3/15.1 6.3/8.2/10/11.9/13.3/16.9
Indoor Unit
Air Flow Volume Indoor m3/hr 1350/1100/950/750 1700/1300/1250/950
Dehumdifying Volume Indoor L/hr 3 3.5
Sound Pressure Level Indoor dB (A) 52/45/42/35 58/49/48/39
Outline Dimension W*H*D mm 1144*333*250 1350*333*253
Package Dimension L*W*H mm 1196*415*337 1438*426*370
Outdoor Unit
Sound Pressure Level Outdoor dB (A) 62 61
Piping Connection Gas Inch 5/8'' 5/8''
Liquid Inch 1/4'' 1/4''
Outline Dimension W*H*D mm 1000*746*427 1000*746*427
Package Dimension L*W*H mm 1080*810*483 1080*810*483
* Cosmo Pro
