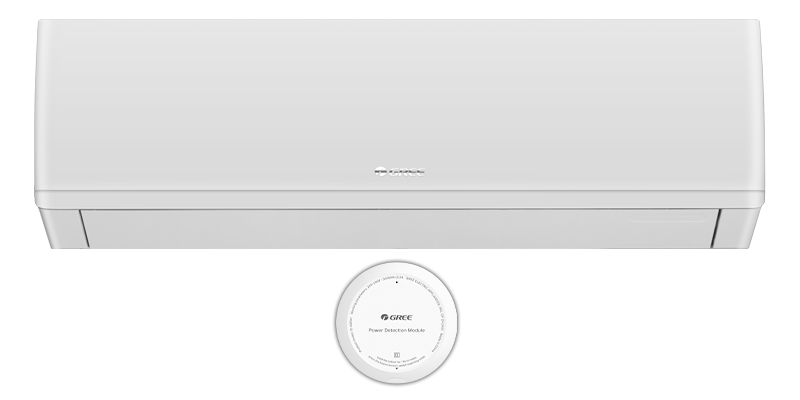

Wall Mounted Split AC

Pular Pro G-Boost Inverter (Master Ampere)


Model  GWH12AGCXD-S3DTA2F GWH18AGDXF-S3DTA2B GWH24AGEXF-S3DTA2H
Max. Cooling Capacity Btu/hr 13648 20472 25900
Max. Heating Capacity Btu/hr 15695 21837 29700
EER/C.O.P W/W 3.9/3.8 3.9/3.8 3.9/3.9
Power Supply Ph,V,Hz 1Ph, 220 - 240, 50-60Hz 1Ph, 220 - 240, 50-60Hz 1Ph, 220 - 240, 50-60Hz
Power Input Cooling  W 877 1350 1654
Heating W 974 1473 1885
Current Input  AA/A5/A4/A3/A2/A1 A 5.8/4.8/3.8/2.8/1.9/1.9 8.9/8/7/6/5/4.7 12/10/8/7.3/6/5.5
Indoor Unit
Air Flow Volume Indoor m3/hr 680/490/390 1150/830/600 1500/950/800
Dehumdifying Volume Indoor L/hr 1.4 1.8 2.5
Sound Pressure Level Indoor dB (A) 44/35/27 48/38/28 53/41/36
Outline Dimension W*H*D mm 825*293*196 982*311*221 1075*333*246
Package Dimension L*W*H mm 875*365*268 1044*385*297 1133*414*333
Outdoor Unit
Sound Pressure Level Outdoor dB (A) 53 60 60
Piping Connection Gas Inch 3/8'' 5/8'' 5/8''
Liquid Inch 1/4'' 1/4'' 1/4''
Outline Dimension W*H*D mm 802*555*350 958*660*402 958*660*402
Package Dimension L*W*H mm 872*398*620 1032*456*737 1032*456*737


Model  GWH30AGEXH-K3DTA2C GWH36AWFXH-S3DTA1A
Max. Cooling Capacity Btu/hr 32750 39240
Max. Heating Capacity Btu/hr 34100 41000
EER/C.O.P W/W 3.2/3.2 2.97/3.45
Power Supply Ph,V,Hz 1Ph, 220 - 240, 50Hz 1Ph, 220 - 240, 50-60Hz
Power Input Cooling  W 2764 3550
Heating W 2795 3250
Current Input  AA/A5/A4/A3/A2/A1
*D1/D3/D2		 A 15/11.3/9.8/8/6.8/6 *16/10.6/8.5
Indoor Unit
Air Flow Volume Indoor m3/hr 1350/950/750 1700/1250/950
Dehumdifying Volume Indoor L/hr 3 3.5
Sound Pressure Level Indoor dB (A) 53/42/35 58/48/39
Outline Dimension W*H*D mm 1075*333*246 1350*333*253
Package Dimension L*W*H mm 1133*414*333 1438*426*370
Outdoor Unit
Sound Pressure Level Outdoor dB (A) 62 61
Piping Connection Gas Inch 5/8'' 5/8''
Liquid Inch 1/4'' 1/4''
Outline Dimension W*H*D mm 1000*746*427 1000*746*427
Package Dimension L*W*H mm 1080*483*810 1080*483*810
