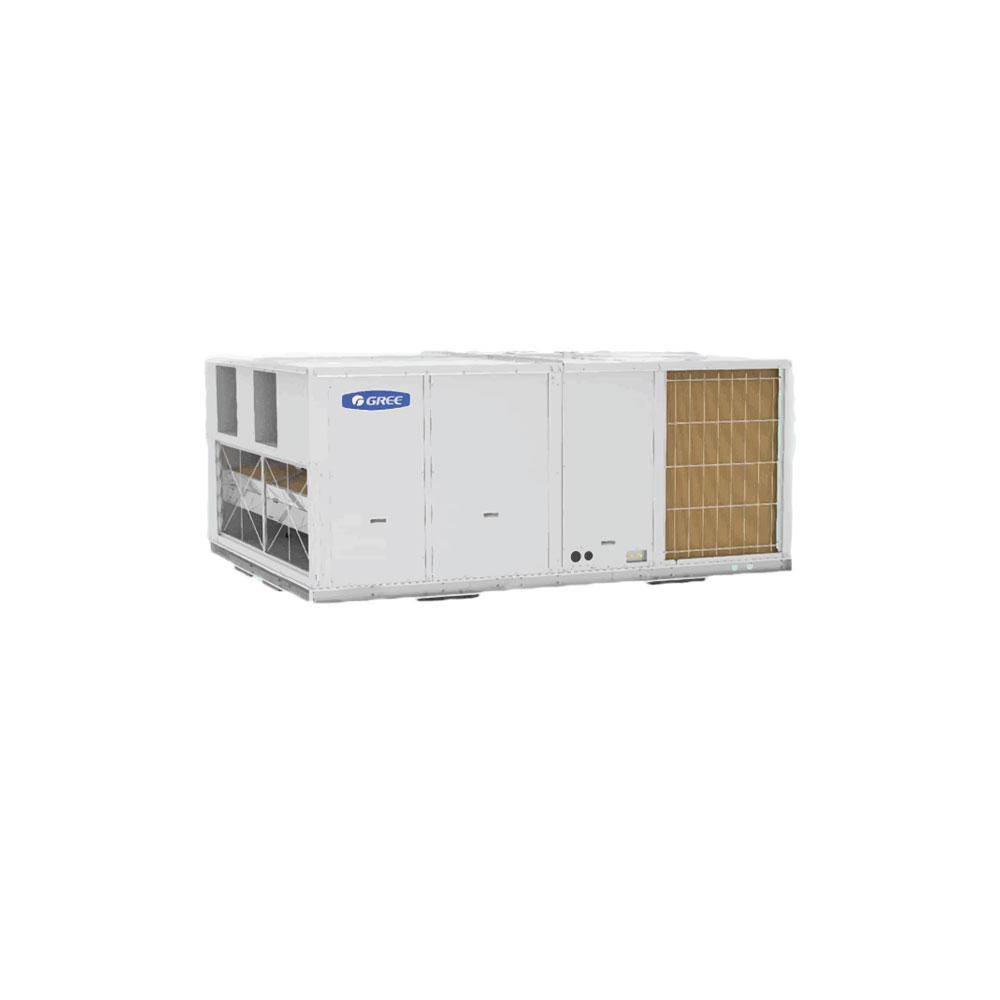

Air Cooled Package Unit

Air Cooled Package Unit


Model GK-H5.5TH/NaA-X(E) GK-H7.5TH/NaA-X(E) GK-H10TH/NaA-X(E)
Cooling Capacity at 35°C Btu/hr 75100 95500 116000
Cooling Capacity at 45°C (T3) Btu/hr 63100 75100 98900
Heating Capacity Btu/hr 88700 105800 133100
EER/C.O.P W/W 2.59/3.47 3.11/3.88 2.52/3.39
Power Supply Ph,V,Hz 3Ph/380 - 415V/50-60Hz  3Ph/380 - 415V/50-60Hz  3Ph/380 - 415V/50-60Hz
Max. Power Input W 10000 10000 15000
Max. Current A 18 18 23
Refrigerant Charge Volume Kg 5 8 10
Sound Pressure Level dB (A) 66 68 72
Air Flow Volume m3 /h 3000 4400 5800
External Static Pressure Pa 60 80 90
External Static Pressure Range Pa 0 - 180 0 - 185 0 - 210
Outline Dimension (W*D*H) mm 1450*1120*815 1450*1120*1215 1450*1120*1215
Package Dimension (W*D*H) mm 1463*1133*860 1463*1133*1260 1463*1133*1260
Net Weight Kg 268 348 350
Gross Weight Kg 289 368 370

Model GK-H15TH/NaA-M(E) GK-H20TH/NaA-M(E)
Cooling Capacity at 35°C Btu/hr 165500 204700
Cooling Capacity at 45°C (T3) Btu/hr 122800 167200
Heating Capacity Btu/hr 189400 242300
EER/C.O.P W/W 2.11/3.36 2.11/2.84
Power Supply Ph,V,Hz 3Ph/380 - 415V/50Hz  3Ph/380 - 415V/50Hz
Max. Power Input W 26000 30000
Max. Current A 44 51
Refrigerant Charge Volume Kg 12 16
Sound Pressure Level dB (A) 74 75
Air Flow Volume m3 /h 9500 15000
External Static Pressure Pa 130 150
External Static Pressure Range Pa 5-200 75-220
Outline Dimension (W*D*H) mm 2260*1140*1245 2240*1880*1250
Package Dimension (W*D*H) mm 2283*1163*1290 2258*1898*1300
Net Weight Kg 590 590
Gross Weight Kg 618 618

Model GK-H25TH/NaA-M(E) GK-H30TC/NaA-M(E)
Cooling Capacity at 35°C Btu/hr 286600 348000
Cooling Capacity at 45°C (T3) Btu/hr 228600 259300
Heating Capacity Btu/hr 324100 412900
EER/C.O.P W/W 2.21/3.11 2.3/3.18
Power Supply Ph,V,Hz 3Ph/380 - 415V/50Hz  3Ph/380 - 415V/50Hz
Max. Power Input W 43000 47000
Max. Current A 73 80
Refrigerant Charge Volume Kg 25 14+14
Sound Pressure Level dB (A) 76 77
Air Flow Volume m3 /h 16500 16500
External Static Pressure Pa 200 125
External Static Pressure Range Pa 100-250 125-350
Outline Dimension (W*D*H) mm 2880*2240*1270 2850*2240*1240
Package Dimension (W*D*H) mm 2893*2253*1290 2863*2253*1285
Net Weight Kg 1180 1009
Gross Weight Kg 1224 1070
